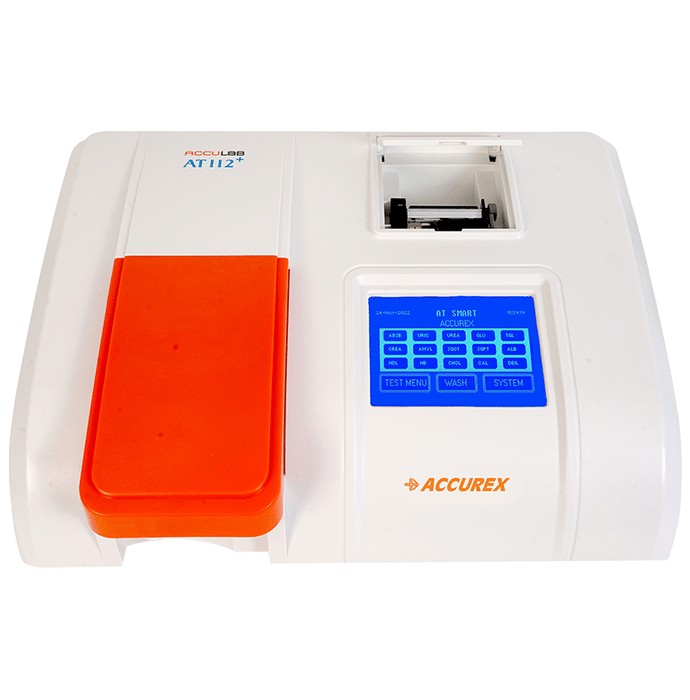

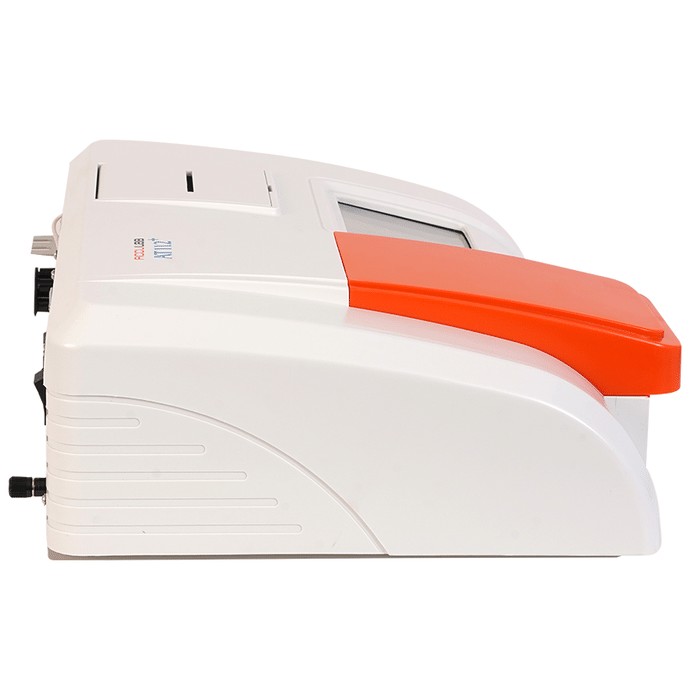

Accurex Acculab AT 112 Plus Biochemistry Analyzer

Overview Accurex Acculab AT 112 Plus Biochemistry Analyzer

The Acculab AT 112 Plus biochemistry analyzer from Accurex boasts an ergonomically optimized touchscreen interface minimizing user strain. Its versatile measurement capabilities include endpoint, kinetic, fixed-time, and absorbance modes, supporting both single and bichromatic analyses. The system's substantial memory stores 3200 results and accommodates 112 programmable channels, utilizing single-standard, multi-point linear, and multi-point non-linear calibration methods. A readily accessible maintenance compartment maximizes operational efficiency. A real-time reaction curve display, coupled with an anti-vibration and anti-disturbance optical system, ensures high-precision results. Intended for in-vitro diagnostics, this biochemistry analyzer offers the following specifications: **Methodology:** Endpoint, kinetic, fixed-time, and absorbance. **Calibration:** Single standard, multi-point linear, and multi-point non-linear. **Programmable Channels:** 112. **Data Storage:** 3200 results. **Quality Control:** Integrated QC software with L-J graph functionality. **Light Source:** 12V/20W quartz-halogen lamp. **Photometric Range:** 0.0000–3.0000 Abs; Resolution: 0.0001 Abs; Drift: 0.002 Abs/hour. **Wavelength Range:** Seven standard filters (340, 405, 492, 510, 546, 578, 630 nm) plus one user-selectable position; half-bandwidth <8 nm. **Stray Light:** <1.0% at 340 nm. **Flowcell:** Stainless steel with quartz window; 10 mm optical path. **Measurement Volume:** 32 μl. **Aspirate Volume (Programmable):** 500–2000 μl. **Temperature Control:** Peltier elements; 25°C, 30°C, and 37°C (±0.1°C). **Display:** Ergonomic LCD touchscreen with optimized viewing angles for reduced neck strain. **Printer:** Integrated high-speed thermal printer. **Interface:** RS-232 serial port. **Dimensions/Weight:** 450 x 360 x 140 mm / 11.5 kg. **Operating Environment:** Temperature: 15–30°C; Humidity: 20–80%. **Power:** AC 110–220 V (±10%), 50/60 Hz. **User Features:** Supports sample ID-based worklists, enabling printouts by sample ID or test parameters. This ensures complete testing for each ID and prevents reagent waste through optimized volume calculations. The system alerts users to any missing tests for a given ID, ensuring comprehensive assay completion. **Safety Precautions:** Store in a cool, dry place away from direct sunlight. Read all labels carefully. Keep out of the reach of children.

How to Use Accurex Acculab AT 112 Plus Biochemistry Analyzer:

This system generates customized worklists for each sample identifier. Reports can be generated sorted by sample ID or test parameters. ID-based printing guarantees complete testing for each sample. Test-based printing optimizes reagent preparation, minimizing waste. The system alerts users to any omitted tests, ensuring comprehensive assay panel completion for every sample.

Safety Instruction of Accurex Acculab AT 112 Plus Biochemistry Analyzer:

• Keep in a cool, dry location, shielded from direct sunlight.
• Always check the product label thoroughly.
• Store where children cannot access.
