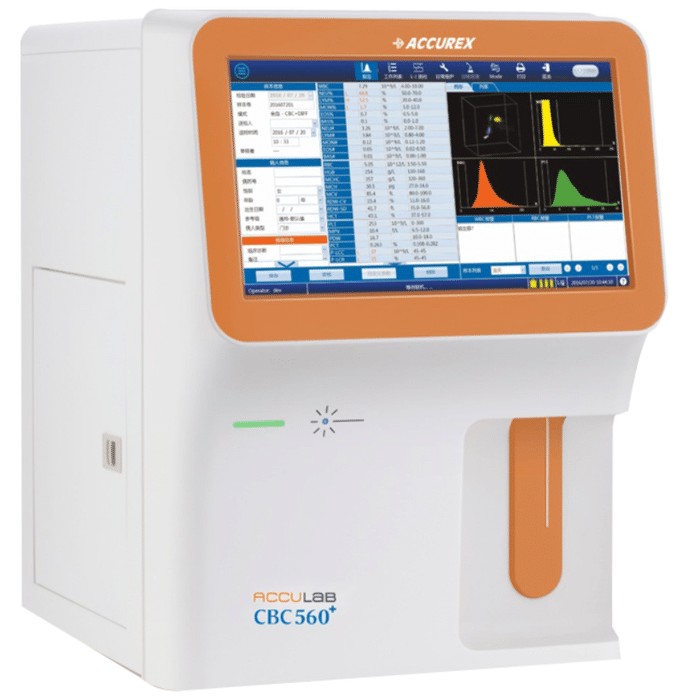

Accurex Acculab CBC 560 Plus 5 Part Hematology Analyzer

Accurex Biomedical Pvt. Ltd

Product highlights

Facilitates white blood cell, complete blood count, and reticulocyte analyses.

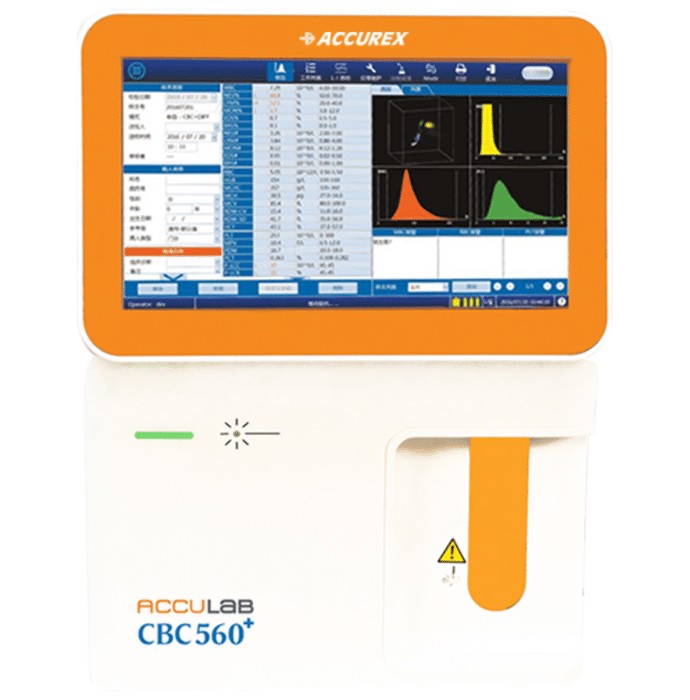

Its display features a 14-inch touchscreen.
It can store up to 100,000 results.

Overview Accurex Acculab CBC 560 Plus 5 Part Hematology Analyzer

The Accurex Acculab CBC 560 Plus is a sophisticated, automated 5-part hematology analyzer. This system processes 60 samples per hour, analyzing 29 parameters and generating 3 histograms. Employing a tri-angle laser scatter, flow cytometry, and impedance methodologies (for RBC and platelet counts), along with a cyanide-free hemoglobin test, it provides precise 5-part WBC differential analysis visualized via a 3D holographic scattergram. A 14-inch touchscreen and ample storage for 100,000 results enhance usability. Connectivity features include four USB ports, a LAN port with bi-directional LIS support, HL7 protocol compatibility, and an integrated RFID reader. Testing modes encompass CBC, CBC+DIFF, venous/capillary whole blood, and prediluted samples, making it ideal for complete blood counts, white blood cell differentials, and reticulocyte analysis. **Specifications:** * **Measurement Principle:** Tri-angle laser scatter, flow cytometry, impedance (RBC/PLT), cyanide-free Hgb * **Sample Volume:** CBC+DIFF: ≤20 µL; CBC: ≤10 µL * **Throughput:** 60 tests/hour * **Assay Parameters:** 29 parameters, 3 histograms * **Display:** 14-inch touchscreen * **Storage:** 100,000 results (including histograms, scattergrams, and patient data) * **Parameters:** WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#, ALY%, ALY#, LIC%, LIC# * **Interfaces:** 4 USB, 1 LAN (bi-directional LIS, HL7 compliant), internal RFID reader * **Power:** 400 VA, AC 220V±10%, 50/60Hz; 110V±10%, 60Hz * **Dimensions (W×D×H):** 670 × 590 × 790 mm * **Weight:** 53 kg **Instructions:** Consult the user manual before operation. **Safety:** All samples, controls, reagents, and waste are potentially biohazardous. Appropriate PPE (gloves, lab coat, etc.) and safe laboratory practices are mandatory.

How to Use Accurex Acculab CBC 560 Plus 5 Part Hematology Analyzer:

Always follow the enclosed directions for proper use.

Safety Instruction of Accurex Acculab CBC 560 Plus 5 Part Hematology Analyzer:

All materials—samples, controls, calibrators, reagents, waste, and associated contact areas—pose a potential biohazard.
Always utilize appropriate personal protective gear, including gloves and lab coats, and adhere to established laboratory safety protocols during handling.
