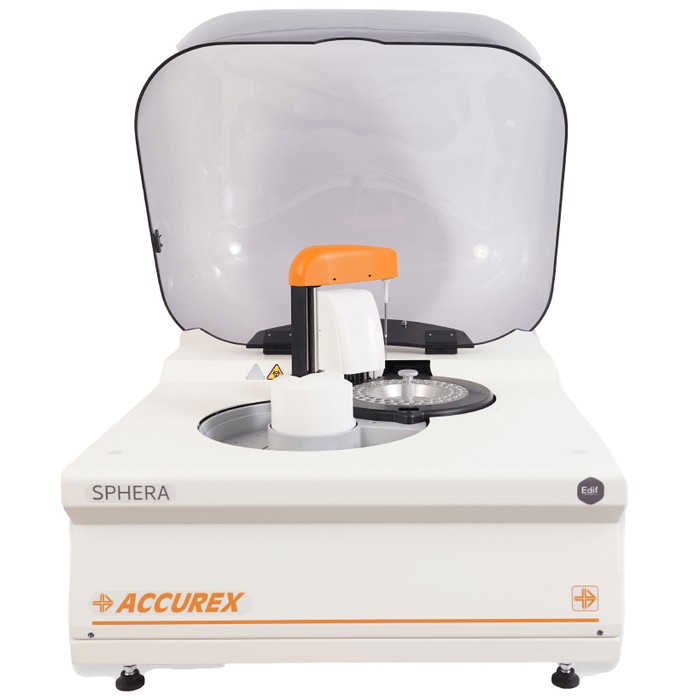

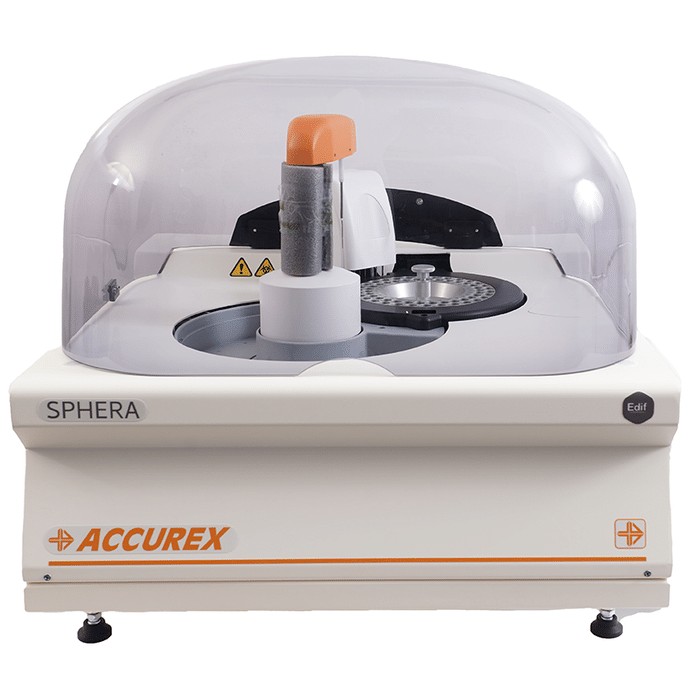

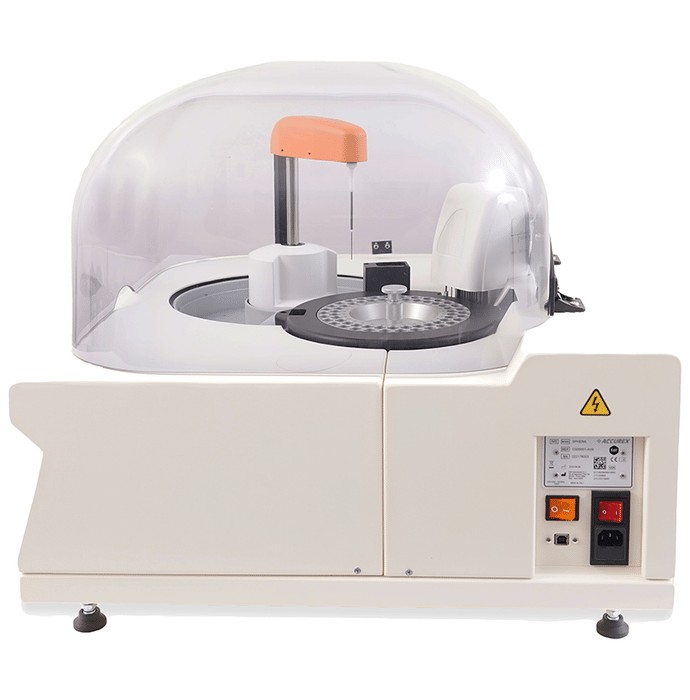

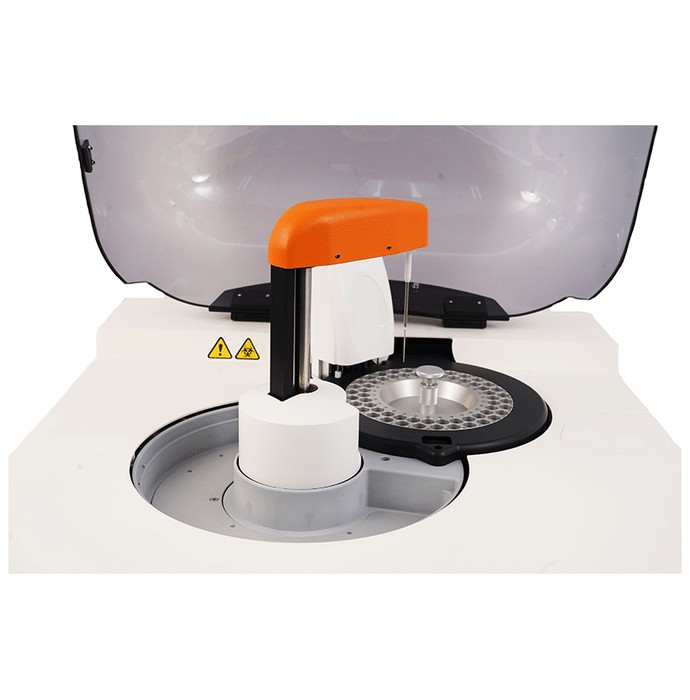

Accurex Sphera M Fully Automated Clinical Chemistry Analyzer

Overview Accurex Sphera M Fully Automated Clinical Chemistry Analyzer

The Accurex Sphera M, an Italian-manufactured, fully automated clinical chemistry analyzer, offers rapid, precise testing. This compact, open random-access system boasts a minimal 210 µl reaction volume and exceptionally low water consumption (<1 L/h). Utilizing 80 reusable UV-transmitting Bionex® plastic cuvettes and an 8-step wash station, it features a refrigerated tray accommodating 30 reagent positions (50 ml or 20 ml bottles) and supports multiple programmable virtual reagent disks. Internal and external probe auto-washing is included. Its capabilities include a throughput of 200 tests/hour (excluding ISE), primary tube and sample cup handling, continuous on-board reagent refrigeration (30 reagents, 60 samples), and integrated liquid level and needle shock detection. Large liquid containers with level sensors, Windows 7/8 & USB compatibility, LIS ethernet connectivity, and automated start-up/shutdown are standard. The system employs two specialized wash solutions for optimal probe cleaning, and features 8 peristaltic pumps (1000-hour lifespan) with replaceable neoprene cassettes (500-hour lifespan), along with 2 vacuum pumps and a pinch valve. Data analysis tools include Levey-Jennings plots, Westgard multi-rules, QC monitoring with reporting (up to 3 levels per test), test counters, CV%, mean, graphical trend analysis, and reagent/method monitoring (volumes, tests, calibration, QC status). Automatic calibrator pre-dilution (up to 8 per method) and auto-result recalculation are also provided. The robust cleaning system uses an 8-step wash process (6 dispensing, 6 aspiration, 1 cleaning needles) and dual wash solutions to eliminate stubborn probe residues.

How to Use Accurex Sphera M Fully Automated Clinical Chemistry Analyzer:

Quality control charting (Levey-Jennings) and Westgard multi-rule analysis; accommodating up to three QC levels per assay. Comprehensive QC monitoring and reporting features include test count, coefficient of variation (CV%), mean, and graphical trend analysis. Reagent and method management encompasses volume tracking, available test assessment, calibration tracking, and QC status monitoring. Automated pre-dilution of calibrators is supported, with capacity for up to eight calibrators per analytical method. Results are automatically recalculated using the most recent calibration data.

Safety Instruction of Accurex Sphera M Fully Automated Clinical Chemistry Analyzer:

• Eight-stage cleaning process for individual cuvettes. (Needles: six for dispensing, six for aspiration, one for cleaning).
• Dual formulations of systemic and specialized cleansing agents for eliminating persistent probe remnants.
