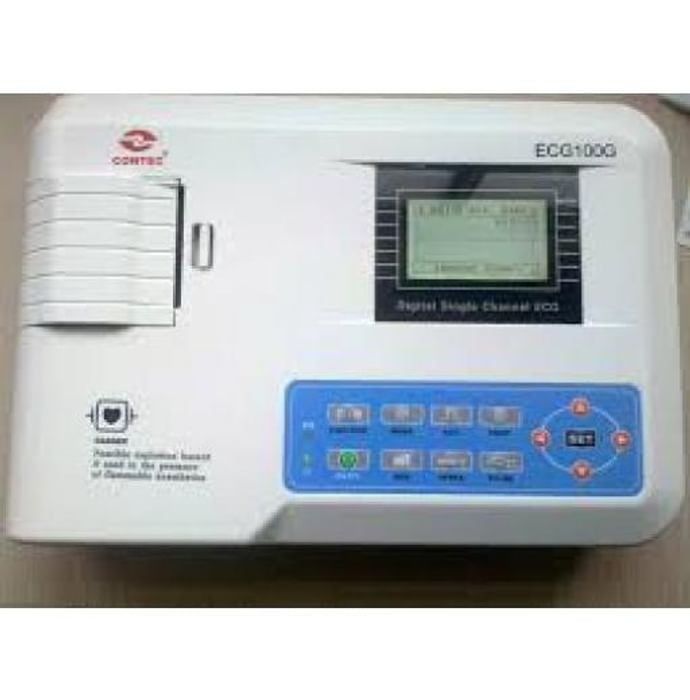

Contec 100G Single Channel ECG Machine

Overview Contec 100G Single Channel ECG Machine

This ECG recording device operates optimally in environments with temperatures ranging from 50°C to 350°C, relative humidity ≤80%, and atmospheric pressure between 86 kPa and 106 kPa. It boasts continuous recording and printing capabilities for 90 minutes (150 ECG waveforms) under optimal DC power. The intuitive, full-touchscreen interface supports Chinese, English, French, Italian, Turkish, and Spanish. Key features include an 8 dots/mm high-resolution thermal array printer (no adjustment needed), a 150 Hz response frequency (-3dB ±0.4dB), precise ECG waveform recording with detailed annotations (lead, sensitivity, speed, filter settings), one-touch automated recording, and a clear LCD status display. Its Class I, CF-applied part classification ensures safety. Power is supplied via AC/DC or an internal rechargeable lithium battery. The device’s sleek design minimizes bulk. Classified as a standard device based on its resistance to deleterious fluids and suitability for use near flammable anesthetic gases, it incorporates a digital signal processor to effectively filter AC interference, electromyographic noise, and baseline drift, resulting in superior waveform clarity. Note: this device is not intended for continuous operation.
