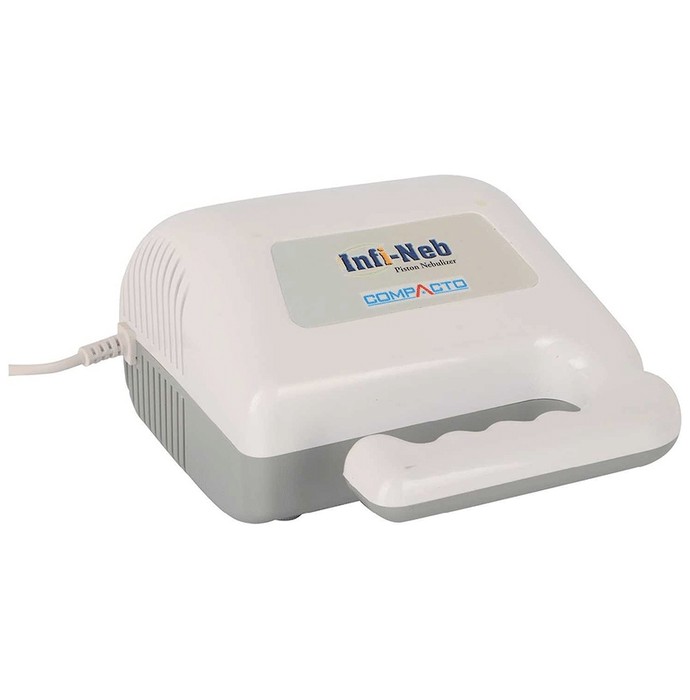

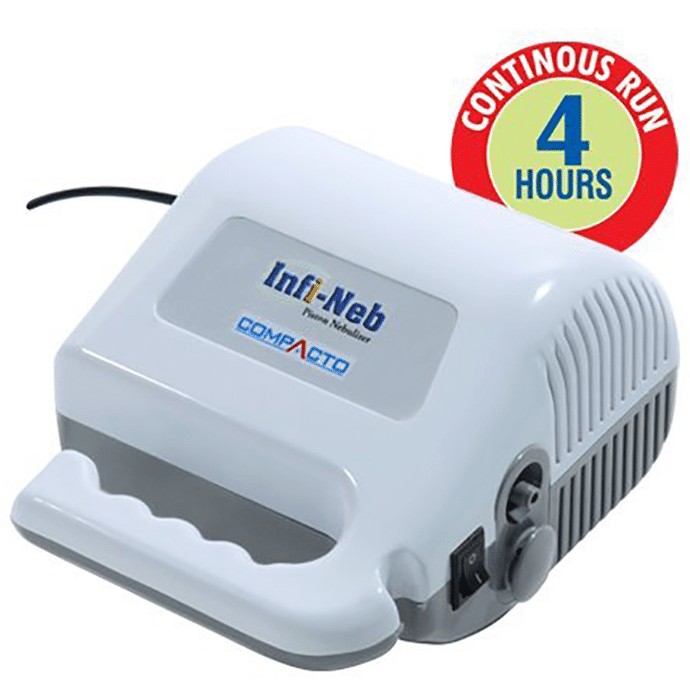

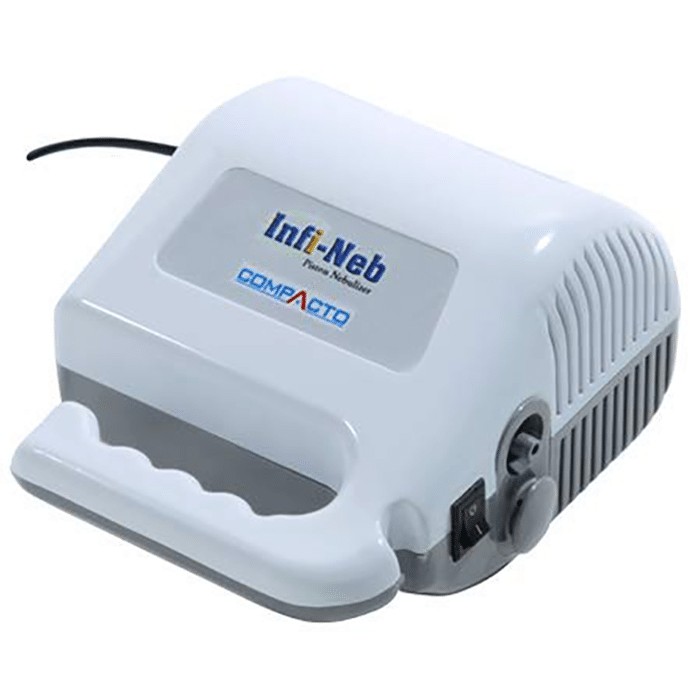

INFI-Neb Compacto ICR A66 Piston Nebuliser

Overview INFI-Neb Compacto ICR A66 Piston Nebuliser

The INFI-Neb Compacto ICR A66 piston nebulizer delivers powerful, consistent airflow for reliable performance. Its integrated thermal protection and automatic shutoff mechanism safeguard the piston pump, ensuring longevity. This device precisely administers medication to the upper and lower respiratory tracts, offering user-friendly operation and five included filters. Indicated for asthma and other respiratory ailments, its specifications include: AC 220V, 50Hz power; 0.6A/68W normal load current; 0.5-5 µm particle size; 10.8" x 6.6" x 4.2" dimensions; 30-70% RH operating humidity; 10-95% RH storage humidity; 1.86 kg (4.1 lb) weight; 25-70°C ( -13-158°F) storage temperature; 10-40°C (50-104°F) operating temperature. Accessories: nebulizer, air tube, adult mask, and filters (5). Sound level: ~60 dBA; operating pressure: 8-16 psi (50-100 kPa/0.5-1.0 bar); average nebulization rate: min 0.2 ml/min; liter flow range: 6-8 lpm; compressor pressure: 36-45 psi (210-250 kPa/2.1-2.5 bar). **Use:** 1. Place the nebulizer on a flat surface with air vents unobstructed. 2. Securely (but not overly tight) attach the silicone tubing to the nebulizer's air tube nozzle and medication chamber. 3. Add the prescribed medication to the chamber. 4. Attach the mask or mouthpiece, connect to a 220VAC power source, and switch on. Inhale deeply and consistently. **Safety:** Always read the label before use. Keep out of children's reach. Store in a cool, dry location.

How to Use INFI-Neb Compacto ICR A66 Piston Nebuliser:

First, position the nebulizer on a stable, flat surface to ensure unobstructed airflow. Remove the device from its storage case. Next, securely attach one end of the silicone tubing to the nebulizer's air intake, avoiding over-tightening to facilitate later removal. Connect the other end to the medication cup. Then, carefully add the prescribed medication to the cup, adhering to the designated dosage. Attach either the mask or mouthpiece, based on preference. Finally, plug the unit into a 220VAC power source and switch it on. Observe the aerosol mist emanating from the mask, confirming proper operation. Inhale deeply and slowly for optimal absorption. Note that the medication within the chamber should only be left for a limited duration.

Safety Instruction of INFI-Neb Compacto ICR A66 Piston Nebuliser:

• Always check the product label before administration.
• Store away from children.
• Keep in a cool, dry environment.
